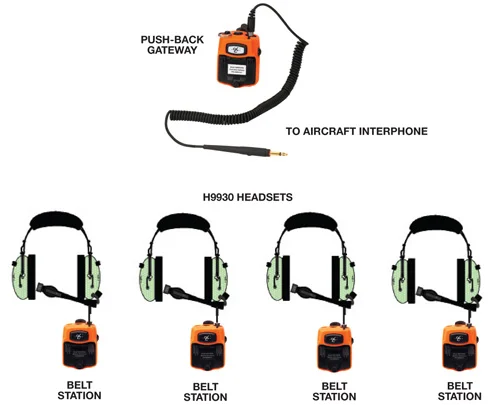

Deicing Intercom Configuration (with Radio)




The Series 9900 Wireless Intercom System is the perfect solution for wireless intercom/radio communications in demanding environments and applications requiring rugged, secure and reliable communications in and around high-noise areas; ideal for push-back operations, wing-walkers, marshalling agents, maintenance mechanics or de-icing operations.

The U9920-GPB Push-Back Gateway is designed specifically for seamless integration with aircraft interphone systems. It acts as a relay for all intercom audio between multiple Wireless Belt Station/Headset users and the interphone systems.

A single Gateway can accommodate up to four (4) connected wireless users at a time with hands-free, full-duplex intercom between a single work group, and Push-To-Talk (PTT) capability for communicating directly with the flight deck.

The U9920-GPB is powered by a Li-Polymer rechargeable battery, capable of 24 hrs. of continual usage between charges, and removable from its water-tight compartment within the RF shielded, marine-grade enclosure.

Buy Now


Features:

  • Hands-free, full-duplex intercom communication

  • DECT 6.0 based technology provides secure signaling & prevents unwanted interception and/or cross talk with other systems or work groups

  • Accommodates up to four (4) wireless belt stations simultaneously connected with audio

  • Controls include a power button for close-proximity linking and system volume control for proper overall system gain setting

  • Aircraft interphone adapter cords required for flight deck communications

  • High-visibility orange skin included for added impact protection (oil, water, UV resistant)

  • "Remove Before Flight" warning banner & lanyard with nylon hook included

  • Marine-grade, water-tight, impact-resistant enclosure for rugged durability and reliability

  • Multiple Gateways able to function within same RF vicinity with no cross-talk

  • Easy, seamless integration to aircraft interphone



Specs:

  • Weight: 10 oz (280g) with battery

  • Frequency: 1,920 MHz - 1930 MHz

  • Average Power Output: 4mW (100mW peak)

  • Range: 100m (300') line-of-sight, typical

  • Carriers: 5 each (1,728 kHz spacing)

  • Time Slots: 2 x 12 (up and down stream)

  • Operating Temperature: -10° C to +45° C

  • Storage Temperature: -20° C to +60° C

  • Power Source: Li-Polymer rechargeable 3.7V cell (2,000 mAh)

  • Power Consumption/Current Draw: 100mA, typical

  • Dimensions: 4" H x 2.75" W x 2.5" D
